Name: 22 Inch Bus Mounted LCD Digital Signage With DHMI Input USB2.0
Brand: Skyvision
SKU: PH2205S
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (148 reviews)

Home Products Wall Mounted Digital Signage

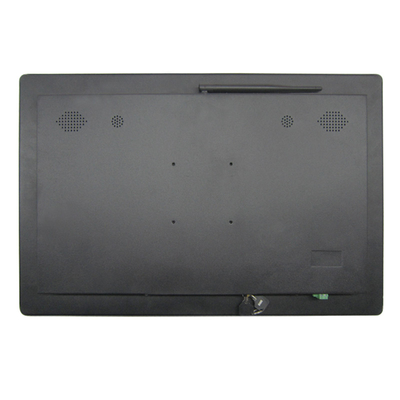

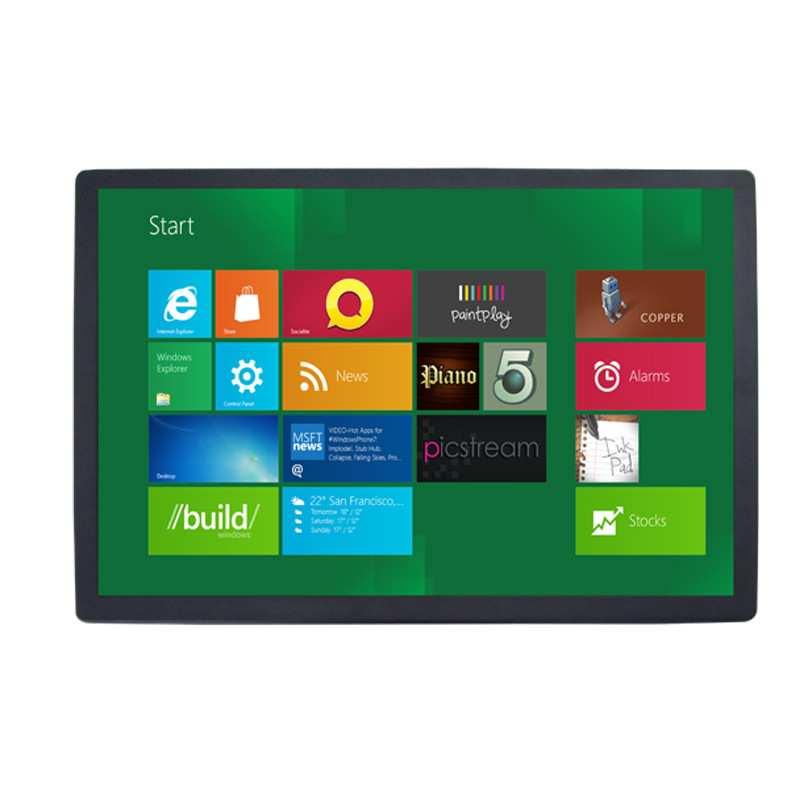

22 Inch Bus Mounted LCD Digital Signage With DHMI Input USB2.0

Product Details:

Place of Origin:	China
Brand Name:	Skyvision
Certification:	CE/ROHS/FCC/PSE
Model Number:	PH2205S

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	negotiate
Packaging Details:	Every unit with color box and 10pcs/carton
Delivery Time:	12 working days after received your payment
Payment Terms:	T/T or western Union
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Product Name:	22 Inch Bus Mounted Digital Signage AD Player	Application:	Bus Mounted
Size Of Panel:	22 Inch	Resolution:	1680*1050
Brightness:	250cm/d	Feature:	Metal Case Bus Monitor
Standard:	CE/ROHS/FCC/PSE
High Light:	digital advertising displays , network digital signage

22 Inch Bus Mounted LCD Digital Signage With DHMI Input USB2.0

Specifications:

Case Material	Metal case with round corner
Case Color	Standard color: Black
Panel Specifications
Model No.	PH2205S
Panel model	21.6inch TFT LCD
Max Resolution	1920x1080
Aspect Ratio	16:09
Pixel Pitch	0.24825×0.24825
Viewing Angle	85/85/80/80
Contrast Ratio	1000:1
Brightness	250cd/m
Response Time	5ms
Operation Temp	( 0~50°C)
panel size(mm)	496×292×23.5mm
Input ports
USB 2.0	x2
HDMI Output	x1
SD	x1
RJ45	x1
3G SIM (Optional)	x1
Power
Power Input	DC 9-36V
Connectivity
LAN	RJ45 Port
WIFI	Built-in WIFI 802.11B/G/N
3G(Optional)	WCDMA
General Information
System	Android 4.2 version
CPU	Dual core ARM Cortex-A7 1.2GHZ
DDR3	1GB
Flash	4GB
Storage Temp	0-65 degree
Working Temp	0-50 degree
Storage Humidity	10-90%
Working Humidity	10-90%
Certificates	CE/FCC/ROHS
Supported Media formats
Video	H.264, MKV, WMV9, MPEG 1/2/4, HD Divx, Xvid, RM/RMVB;
Image	BMP/PNG/GIF/JPEG
Audio	MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC;
Scrolling text	txt
Functions
Rolling subtitles	display the subtitles at the bottom of screen with the video and picture,
Power Memory	Support program replaying from the setting time before the power failure
Split Screen	Support 1080p video, 1080p picture, picture, video and subtitles split-screen function.
Software Update	Software update
Display Mode	Support Portrait & Landscape display mode
Play mode	Repeat all, single repeat, order play

1920x1080 Full HD resolution

-- 16:9 Aspect Ratio

-- 85/85/80/80 wide viewing angle

-- 300cd/m2 brightness (500/1000/1500nits brightness options)

-- Infrared touch/capactive touch options

-- LAN/WIFI/3G Network connection options

-- GPS Function options

-- 9-36V Wide Voltage for bus application

-- Ceiling mount/Handrail Mount options

-- Dual Core ARM Cortex -A7 1.2GHZ Processor

-- 1GB DDR3 memory

-- 4GB Storage

-- Android 4.2 OS

-- Portrait and Landscape orientation

-- HD 1080p HDMI Video Output

-- Wi-Fi 802.11 b/g/n with External Antenna

-- RJ45 10/100M Ethernet interface

-- 2PCS USB Port, 3G Slim Card/SD Card reader

-- Remote management software options

-- Motion sensor/Touch screen function options

Applications:

Business product promotional gift	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
