| Place of Origin: | China |
| Brand Name: | Skyvision |
| Certification: | CE/ROHS/FCC/PSE |
| Model Number: | PH105OF |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Every unit with color box and 10pcs/carton (36.5*35*45CM) NW/GW:16/13KG |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 6,000pcs per month |
| Product Name: | 10 Inch Shopping Mall LED Backlight LCD Advertising | Application: | MSN/Skype/Facebook/Twitter/Youtube/E-mail/google Map Etc |
|---|---|---|---|
| Size Of Panel: | 10 Inch | Resolution: | 1280*800 |
| Brightness: | 350cm/d | Feature: | Open Frame And HD |
| Standard: | CE/ROHS/FCC/PSE | Type: | Wall Mout And Display Assembel |
| High Light: | digital advertising displays,network digital signage |
||

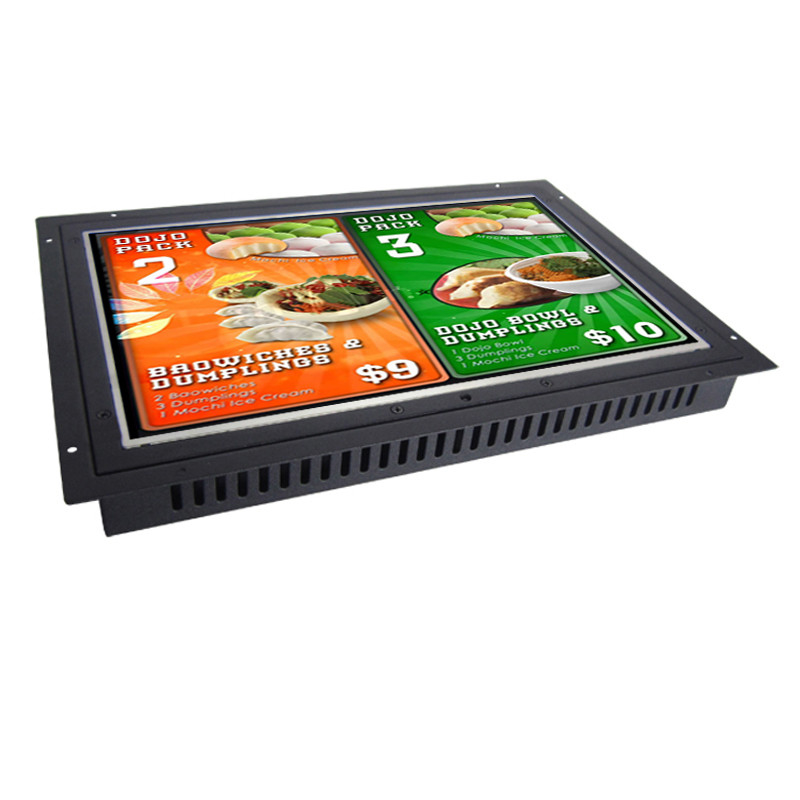

Open Frame Standalone Wall Mounted Digital Signage Outdoor HD
Specifications:
10inch Open Frame Standalone LCD Display HDMI INput Loop Video Play
Functional description:
|
Panel model |
10.1inch TFT LED |
|
Max Resolution |
1280×800 |
|
Aspect Ratio |
16:09 |
|
Pixel Pitch |
0.1659×0.1659 |
|
Viewing Angle |
85/85/85/85 |
|
Contrast Ratio |
1300:1 |
|
Brightness |
350cd/m |
|
Response Time |
25ms |
|
Operation Temp |
( 0~50°C) |
|
panel size(mm) |
241.86×161.6×5.2mm |
|
Input ports |
|
|
USB 2.0 |
x1 |
|
SD |
x1 |
|
CF |
x1 |
|
HDMI |
Option |
|
VGA |
Option |
|
Specification |
|
|
Video format |
MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,MOV,FLV,3GP, |
|
Audio/Picture format |
MP3/JPEG, BMP,PNG |
|
Memory Cards |
Compact Flash card (CF card)/SD Card/USB flash drive |
|
Screen Mode |
Landscape&Portrait |
|
Memory Protection |
Auto-update content to CF card via USB drive. |
|
Timer Function |
Auto Power on/off |
|
Play Modes |
Play videos automatically once power on, automatically replay, Playlist function |
|
Protect Function |
Effectively prevent the player and CF card from being stolen in public place |
|
Power Memory |
Support program replaying from the setting time before the power failure |
|
Slide Show |
Support background music when playing picture |
|
Interface Language |
Support different languages (Chinese, English, etc.) |
|
Scroll Caption |
Support scrolling caption, effect index can be changed |
|
Calendar&Time |
Support check calendar, adjust time and display it on the screen on/off |
|
Accessory |
|
|
Remote controller |
x1 |
|
Power Supply |
x1 |
|
Use's manual & Software |
x1 CD Disk |
|
Bracket |
options |
|
Lock key |
x1 |
|
Certificates |
CE/FCC/ROHS |
|
Extendable functions |
|
|
Motion Sensor |
options |
|
Touch Screen |
options |
|
Color |
options |
-- Support 1080P Video, Music and Picture playback
-- Support CF, SD, MMC Card Reader and USB Port
-- Support 5 groups timers function to turn on/off at the designated time
-- Support Playlist function to auto play the designated file at the specify date
-- Support USB Auto update function, update the content by USB drive to SD Card
-- Support Scrolling text with different color and effect
-- Support slideshow functions, to play music and pictures at the same time
-- Support Landscape and Portrait two display modes
-- Support 2pcs high quality built in speakers.
-- Touch Screen, Motion Sensor and Tempered glass protection functions options
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
|
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; |
|
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Competitive Advantage:
Skyvision ,a experienced digital photo frame ;video card ;acrylic product manufacture , with acrylic Carve, LOGO print , assemble coordinated process
All digital photo frame has single color box (can customized),screen start image can be customized by your company logo, easy fixed displayer by vesa hole 75*75mm,all kind of acylic display can be customized with screen
