| Place of Origin: | China |
| Brand Name: | Skyvision |
| Certification: | CE/ROHS/FCC/PSE |
| Model Number: | PH101BF |
| Minimum Order Quantity: | 150pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Every unit with color box and 10pcs/carton (34.5*33*44CM) NW/GW:7.5/10KG |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 10,000pcs per month |
| Product Name: | 10 Inch Shopping Mall LED Backlight LCD Advertising | Application: | MSN/Skype/Facebook/Twitter/Youtube/E-mail/google Map Etc |
|---|---|---|---|
| Size Of Panel: | 10 Inch | Resolution: | 1280*800 |
| Brightness: | 350cm/d | Feature: | Speaker Infront |
| Standard: | CE/ROHS/FCC/PSE | Type: | Wall Mounted And Stable Standing |
| High Light: | digital advertising displays,network digital signage |
||

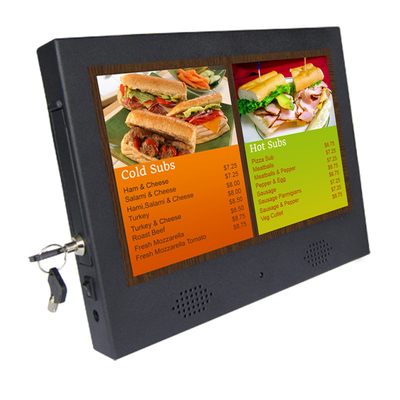

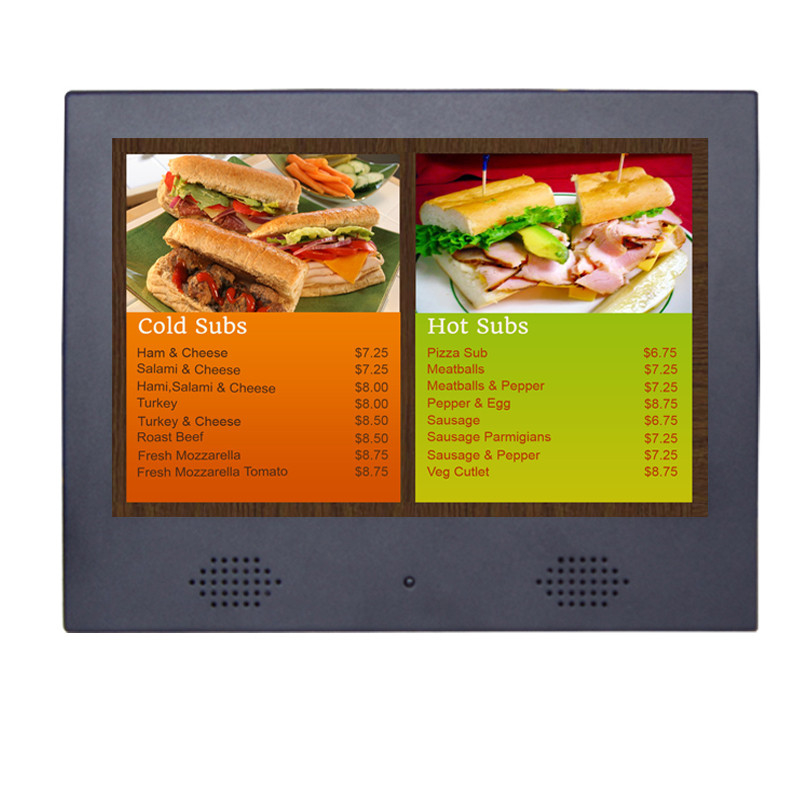

Shopping Mall Led Backlight Wall Mounted Digital Signage Players
Specifications:
|
Technical Parameter for LCD Panel |
Panel Size |
10 inch HD Digital Signage LCD display |
|
Aspect Ratio |
16:10 |
|
|
Active Area |
186.08mm(H) x 178.80mm(V) |
|
|
Max. Resolution |
1280*800 |
|
|
Dot Pitch |
0.0745mm(H) x 0.2235mm(W) |
|
|
Number of Color |
16.7M |
|
|
Brightness |
350cd/m2 |
|
|
Contrast Ratio |
400:1 |
|
|
Responsive Time |
8ms |
|
|
Panel Life |
above 50000 hours |
|
|
Storage Medium |
Flash memory card |
2gb to 36gb for the capacity |
|
Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) full video format |
|
Audio formats |
MP3 |
|
|
Photo formats |
JPG |
|
|
OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
|
|
Audio output |
stereo L/R, 5W*2, 8Ω |
|
|
Power supply |
AC 110V - 240V, 50/60HZ |
|
|
Storage Temperature |
-7 to 65 Celsius degree |
|
|
Normal Working Temperature |
-5 to 65 Celsius degree |
|
10 Inch Shopping Mall LED Backlight LCD Advertising Display
Functional description:
| Display | Panel | 10" HD panel,LED backlight | |||||||||||||
| Resolution | 1280*800 | ||||||||||||||
| Contrast ratio | 300 | ||||||||||||||
| Luminance | 350cdm2 | ||||||||||||||
| Aspect Ratio | ,16:10 | ||||||||||||||
| Interface | Card slot | SD/MMC/MS | |||||||||||||
| HDMI | HDMI input | ||||||||||||||
| AV | AV input(CVBS+audio) | ||||||||||||||
| USB Host | USB Host 2.0 | ||||||||||||||
| Power Jack | DC 12V power input | ||||||||||||||
| Head phone | 3.5mm earphone | ||||||||||||||
| Sound System | Speaker | Built- in speaker 2x1W | |||||||||||||
| VIDEO | VIDEO format | MPEG2,MPEG4,H.264,RM,RMVB ,MPG,MOV,AVI,MKV,TS etc.Support 1920*1080p | |||||||||||||
| AUDIO | Audio format | MP3,AAC | |||||||||||||
| PHOTO | PHOTO | JPEG,BMP | |||||||||||||
| Other | Automatic slide show playback | ||||||||||||||
| OSD Languages | OSD Language | Multi OSD language | |||||||||||||
| Other funtcion | Wall mounting bracket | 50mm*50mm wall mounting | |||||||||||||
| Remote control | Full function remote control | ||||||||||||||
| Real time clock | yes | ||||||||||||||
| Auto play | Auto playback and loop function for video files | ||||||||||||||
| Power consumption | 12W | ||||||||||||||
| Others | Accessories | User manual | |||||||||||||
| Adapter | |||||||||||||||
| Remote control | |||||||||||||||
| Stand | |||||||||||||||
| Color | black/white | ||||||||||||||
-- Support 1080P Video, Music and Picture playback
-- Support CF, SD, MMC Card Reader and USB Port
-- Support 5 groups timers function to turn on/off at the designated time
-- Support Playlist function to auto play the designated file at the specify date
-- Support USB Auto update function, update the content by USB drive to SD Card
-- Support Scrolling text with different color and effect
-- Support slideshow functions, to play music and pictures at the same time
-- Support Landscape and Portrait two display modes
-- Support 2pcs high quality built in speakers.
-- Touch Screen, Motion Sensor and Tempered glass protection functions options
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
|
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; |
|
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Competitive Advantage:
Skyvision ,a experienced digital photo frame ;video card ;acrylic product manufacture , with acrylic Carve, LOGO print , assemble coordinated process
All digital photo frame has single color box (can customized),screen start image can be customized by your company logo, easy fixed displayer by vesa hole 75*75mm,all kind of acylic display can be customized with screen
