Name: 3G Android Network Digital Signage Display Monitors High Resolution
Brand: Skyvision
SKU: PH1705S
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (160 reviews)

Home Products Wall Mounted Digital Signage

3G Android Network Digital Signage Display Monitors High Resolution

Product Details:

Place of Origin:	China
Brand Name:	Skyvision
Certification:	CE/ROHS/FCC/PSE
Model Number:	PH1705S

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiate
Packaging Details:	Every unit with color box and 10pcs/carton
Delivery Time:	12 working days after received your payment
Payment Terms:	T/T or western Union
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	17 Inch Bus Monitor	Application:	Bus Mounted
Size Of Panel:	17 Inch	Resolution:	1024*768
Brightness:	500cm/d	Feature:	Metal Case And Narrow Width
Standard:	CE/ROHS/FCC/PSE
High Light:	digital advertising displays , network digital signage

3G Android Network Digital Signage Display Monitors High Resolution

Specifications:

Case Material	Metal case with round corner
Case Color	Standard color: Black
Panel Specifications
Model No.	PH1705S
Panel model	17inch TFT LCD
Max Resolution	1280x1024
Aspect Ratio	4:3
Pixel Pitch	0.264x0.264
Viewing Angle	70/70/60/60
Contrast Ratio	350:1
Brightness	250cd/m
Response Time	5ms
Operation Temp	( 0~67°C)
panel size(mm)	358.5x296.5x17

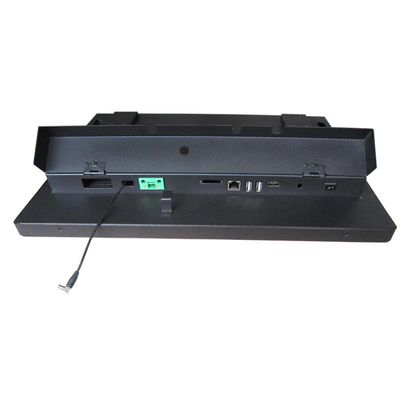

Input ports
USB 2.0	x2
HDMI Output	x1
SD	x1
RJ45	x1
3G SIM (Optional)	x1
Power
Power Input	DC 9-36V
Connectivity
LAN	RJ45 Port
WIFI	Built-in WIFI 802.11B/G/N
3G(Optional)	WCDMA
General Information
Operating System	Android 4.2
Processory	Dual Core ARM Cortex-A7 1.2GHZ
DDR3	1GB
Flash	4GB
Storage Temp	0-65 degree
Working Temp	0-50 degree
Storage Humidity	10-90%
Working Humidity	10-90%
Certificates	CE/FCC/ROHS
Supported Media formats
Video	H.264, MKV, WMV9, MPEG 1/2/4, HD Divx, Xvid, RM/RMVB;
Image	BMP/PNG/GIF/JPEG
Audio	MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC;
Scrolling text	txt
Functions
Rolling subtitles	display the subtitles at the bottom of screen with the video and picture,
Power Memory	Support program replaying from the setting time before the power failure
Split Screen	Support 1080p video, 1080p picture, picture, video and subtitles split-screen function.
Software Update	Software update
Display Mode	Support Portrait & Landscape display mode
Play mode	Repeat all, single repeat, order play

Applications:

Business product promotional gift	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
